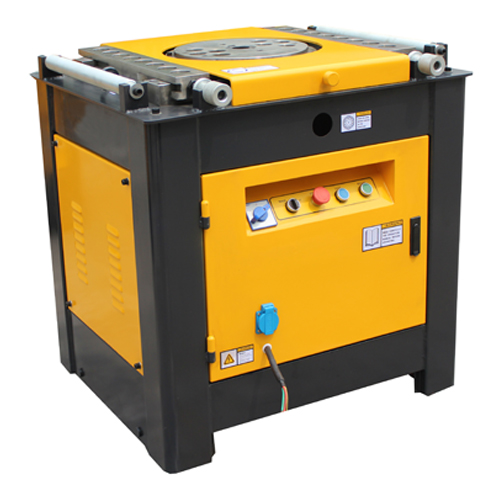

Steel Bar Bender Machine
Main Specifications
| The largest nominal diameter for bending off steel bar | φ42mm (tensile strength σb ≤ 450MPa) |
| The largest size to cut off flat steel | 70 × 15mm |
| The largest size to cut off square steel | (Q235A) 32 × 32mm |
| Cutting speed | 48 cuts / min |
| Motor model | Y2100L-2 |
| Power | 3.0kW |
| Rotary speed | 2880 r / min |
| Total weight | 510kg |
| Overall dimension | 1100×500×1050mm |
Recommendation for piece number of simultaneously cutting off steel bars with diameters smaller than φ22mm
| Diameter of steel bar (mm) | 4~8 | 10~13 | 14~18 | 19~22 | More than 22 |
| Cutting off piece number each time | 6 | 5 | 3 | 2 | 1 |
