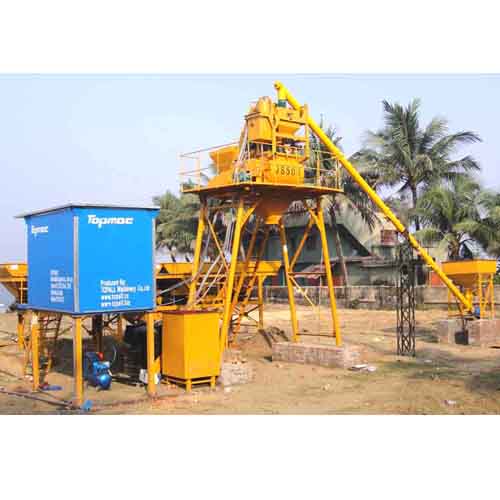

Stationary Concrete Batching Plant

Description

TOPMAC is a very famous manufacturer of small concrete batching plants in China with an annual export volume of 160 units to Pakistan, Bangladesh, India, Nepal, Philippines and African countries. It features compacting structure which enables min. shipping charge. TOPMAC has reliable performance with Schneider in Bangladesh electric parts, and well-trained team who responses for the after-sale service. It can be tailor-made for each customer, which will satisfy all kinds of requirements from the customers.

Advantages of Stationary Concrete Batching Plant

1. The machine has high production performance.
2. High quality and precise concrete production (with fully automated computerized control system)
3. Different layout options according to customer requirements
4. Possibility for different kinds of concrete production with different types of stationary concrete batching plant

Parts of the Stationary Concrete Batching Plant

Automatic Control System with PC	Automatic Control System without PC	Cement, Water, Additive System

Batching Machine	Double Shaft Concrete Mixer	Bagged Cement Loading Hopper

Specifications for Stationary Concrete Batching Plant

Model	CBP30	CBP45	CBP60	CBP90	CBP120
Capacity (m3/h)	30	45	60	90	120
Mixer	JS500	JS750	JS1000	JS1500	JS2000
Batch machine	2/3/4 × 3m3 -1200litre	3/4 × 3m3-1200litre	3/4 × 7 m3-1600litre	3/4 × 12m3-2400litre	3/4 × 12m3-3200litre
Max. Aggregate Size (mm)	≤ 60	≤ 60	≤ 80	≤ 80	≤ 80
Aggregate scale	(0-2000)kg, ±2%	(0-2000)kg, ±2%	(0-2500)kg, ±2%	(0-3600)kg, ±2%	(0-4500)kg, ±2%
Water scale	(0-300)kg, ±1%	(0-300)kg, ±1%	(0-300)kg, ±1%	(0-400)kg, ±1%	(0-500)kg, ±1%
Cement scale	(0-300)kg, ±1%	(0-500)kg, ±1%	(0-600)kg, ±1%	(0-800)kg, ±1%	(0-1500)kg, ±1%
Additive scale	(0-20)kg, ±1%	(0-30)kg, ±1%	(0-30)kg, ±1%	(0-40)kg, ±1%	(0-50)kg, ±1%
Discharging height (m)	3.8	3.8	3.8	3.8	3.8
Total power (hp/kW)	75 / 55	116 / 85	150 / 110	2.4 / 150	230 / 170
Total weight (ton)	20	25	40	44	48
Area for installation (m2)	18 × 15	18 × 15	20 × 10	25 × 10	25 × 25
Container number for shipment	1×40HQ	1×40HQ + 1×20’	2×40HQ	2×40HQ	2×40HQ + 1×20’

Application Cases

In Bangladesh	In Kenya

In Pakistan	In Philippines
