Steel Bar Bender Machine

  • GW40Steel Bar Bender Machine GW40
  • GW50Steel Bar Bender Machine GW50
  • GW42DSteel Bar Bender Machine GW42D
  • GW55DSteel Bar Bender Machine GW55D
Steel bar bending machine mainly consists of drive mechanism, framework and workbench. With regard to the drive mechanism, the working disk rotates due to the drive of motor through V-belt, belt pulley and gear pair. Automatic steel bar bender has angle adjusting mechanism. The angle adjusting device is fitted on the working disk to achieve automatic operation.

Types

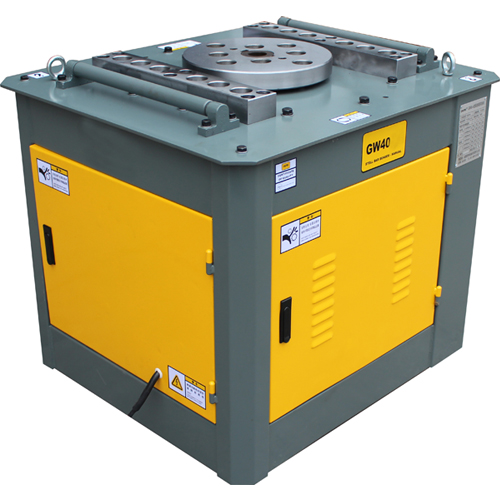

GW40 Steel Bar Bending Machine

1. Steel bar bending machine GW40 is a gear-pair driving angle bending machine featured with a compact structure, flexible and easy operation, reliable function, stable performance, easy repair and maintenance, nice appearance and novelty. It can bend up to 42mm Q235 steel or 36mm C45 Class II steel bar into various shapes according to needs. GW40 automatic steel bar bender has the function of automatic bending and molding under the preconditions of hand charging.
2. It is highly recommended not to bend the maximum diameter (42 mm) for a long period of time without an adequate period of rest of the machine.

GW50 Steel Bar Bending Machine

1. Steel bar bending machine GW50 is a gear-pair driving angle bending machine featured with a compact structure, flexible and easy operation, reliable function, stable performance, easy repair and maintenance, nice appearance and novelty. It can bend up to 50mm Q235 steel or 40mm C45 Class II steel bar into various shapes according to needs. GW40 steel bar bending machine has the function of automatic bending and molding under the preconditions of hand charging.
2. It is highly recommended not to bend the maximum diameter (50 mm) for a long period of time without an adequate period of rest of the machine.

GW42D Automatic Steel Bar Bender

1. Case was shaped by precise mould with extra thick wall which made it stronger.
2. All spare parts can operate safely under heavy load for a long time.
3. Saddles and working disc are made by cast structural steel. All pile head and pile head casing are made by alloy steel which is under heat treatment for a long working life.
4. With brake motor, adjustable saddle and pin style working disc featured with easy adjustment and accurate bending angle, the round working disc can turn back to original position automatically.

GW55D Steel Bar Bending Machine

1. Adopt totally enclosed type case so that gear and bearing can operate for long period in conditions of sufficient lubrication and dustless.
2. Holes have been processed wholly to ensure the installation accuracy of gear
3. The automatic steel bar bender adopts the all rolling bearing structure featured with light rotating, long service life.
4. The case opens at both ends can facilitate installation and disassembly of internal parts.
