Series GP Grout Pump

Description

Combined bolting and shotcrete can improve the stability of rock-soil and solve complex geotechnical engineering problem by taking advantage of its own strength and self-stabilization. Combined bolting and shotcrete can’t do without grouting. The design and construction has more and more requirements on the cement slurry, which is strictly regulated by various kinds of construction specification. General grout pump is hard to meet these requirements.
Our company has developed new-type of grout pump with proprietary intellectual property rights which has the advantages of high pressure and mass flow by adopting worm supercharger technology and absorbing advantages of similar products. This hydraulic grout pump has solved the problem of how to deal with mortar cement ratio and grouting pressure; at the same time, the grout pump is equipped with ejector to spray the bottom and finishing coat of interior and exterior.
Our hydraulic grout pump can be widely used in highway construction, railway tunnel project, city subway project, etc.

Advantages

This grout pump adopts unique structure to avoid the problem of hard to grouting and it is also very safe and high efficient. The features of the machine are as follows:
1. Easy operation and maintenance, high reliability.
2. The hydraulic grout pump is equipped with rabbling mechanism which can improve the work efficiency by stirring and grouting at the same.
3. Wheel type design is easier to move.
4. The grout pump has a wide range of water cement ratio, which is very suitable for high concentration cement slurry.
5. The machine can continuously grout to avoid strong instant pulsating pressure.
6. The pump has the function of long-range control, which is able to remote operation in the range of 10 meters.
7. Our company is an experienced construction and engineering equipment supplier in China. Our products have gained the CE certification.

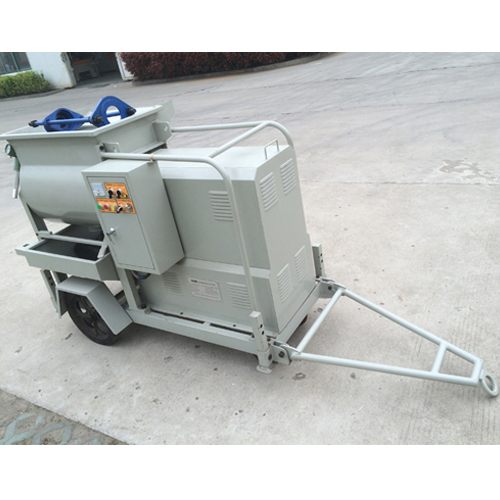

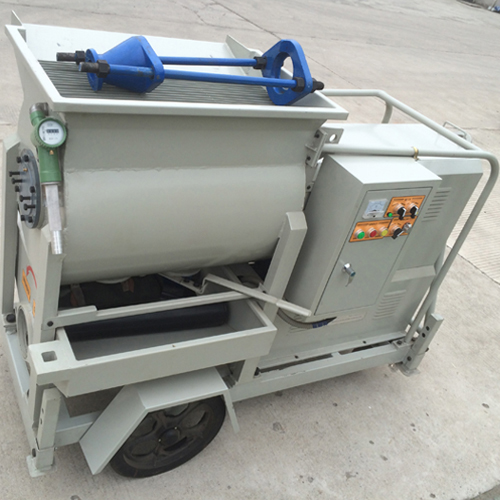

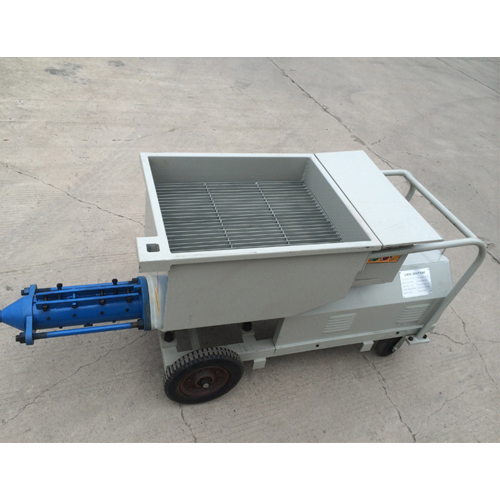

Site Photos

Main Specifications of the Grout Pump

model		GP-200	GP-300	GP-400	GP-500
slurry producing amount		1500/2500 L/H	1500/3000 L/H	5000 L/H	5000 L/H
motor power		4 KW	5.5 KW	7.5 KW	7.5/3.0 KW
size of sand grain		≤3 mm	≤3 mm	≤5 mm	≤5 mm
W/C		≥0.30	≥0.30	≥0.30	≥0.30
pressure of grouting		2.5-4.0 Mpa	2.5-5.0 Mpa	2.5-6.0 Mpa	2.5-6.0 Mpa
transportation distance	vertical	40(cement mortar)M/80(cement paste)M (sand-cement slurry)/80 (grout)	50(cement mortar)M/80(cement paste)M (sand-cement slurry)/80 (grout)	60(cement mortar)M/80(cement paste)M (sand-cement slurry)/80 (grout)	60(cement mortar)/80(cement paste)M
	horizontal	180M	200M	200 M	200 M
volume of grouting		130L	160L	180 L	220 L
overall weight		230kg	280kg	320 kg	520 kg
external dimension		1360×580×800 mm	1400×650×900 mm	1300×670×900 mm	1460×800×930 mm
